A balcony railing complete set from ELEO for straight runs, U-shapes or L-shapes, with a clearly defined scope of delivery and a coating of your choice.
✓ Tailor-made planning
✓ Flexible coating
✓ Optional technical drawing
A balcony railing complete set from ELEO bundles all the essential components for safe and visually coherent fall protection into a single system. The focus is on metal constructions, as they offer high dimensional stability and require less maintenance than timber, WPC or glass. To support planning and selection, the overview of suitable railing sets presents the available versions and a set logic for different balcony geometries.
A balcony railing set is designed as a coordinated package so that all key components fit together and the mounting points are transparent. Depending on the version, the set comprises railing panels, posts, handrail components and the connections that suit the respective fixing method. On balconies with corners, the balcony railing complete set in a U-shape or L-shape is put together so that corner posts, panel lengths and connection sides produce clean, stable lines.
The specific scope of delivery depends on the shape, but follows a consistent principle: load-bearing posts, railing panels and defined connection points. A balcony railing complete set typically contains the following elements:
For precise coordination with the existing substrate, a technical drawing is helpful, for example for post axes, edge distances and the corner detail of a U-shaped or L-shaped balcony railing. This makes it possible to check at an early stage whether fixing to the slab, parapet or slab edge is intended and how the loads are transferred into the structure.
Standard sizes make fast project planning easier, as recurring panel widths and post spacings give structure to the structural and installation planning. In a balcony railing complete set, the dimensions are defined so that railing panels are offered in common grid sizes and corners can be added as a system solution. The relevant dimensional points in planning are:
In new builds and renovations, the substrate is also decisive: concrete, masonry and steel structures require different anchor and screw solutions. A balcony railing set should therefore always be assessed in the context of the mounting method, so that the fasteners suit the building situation.
The shape determines how many sides are secured and how the corner detail is resolved. A straight balcony railing complete set is suitable for linear balcony fronts. A U-shaped balcony railing encloses two corners and three sides. An L-shaped balcony railing covers one corner and two sides. Thanks to the system logic, handrail heights, post cross-sections and panel appearance remain consistent across all sides.

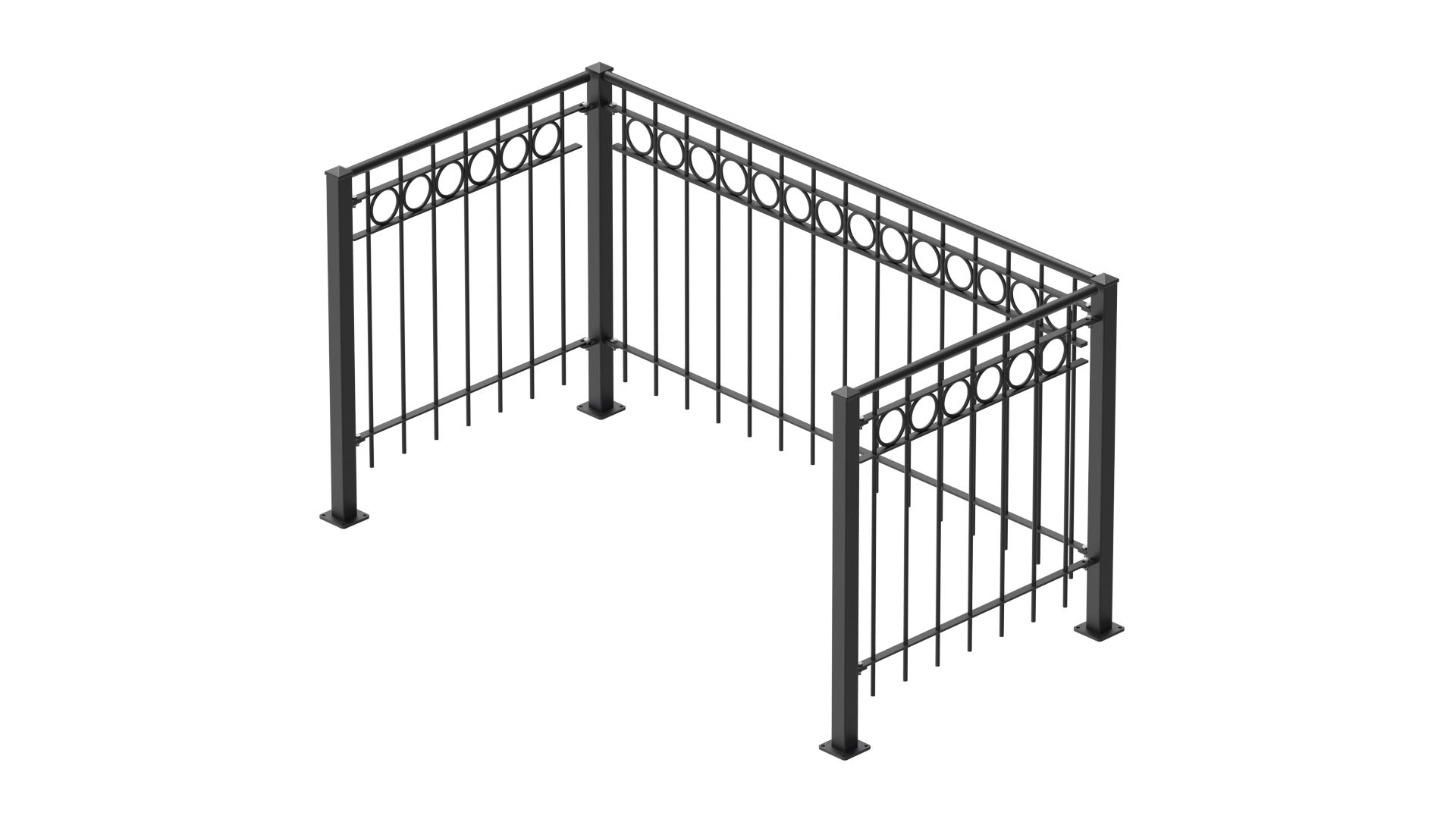

A U-shaped balcony railing is used when three balcony sides need to be secured, for example on free-standing or laterally open balconies. In the balcony railing complete set for the U-shape, the corner posts and the transitions between the sides are central, because they define the geometry. In practice, it is important that:
For planning reliability, a technical drawing showing the three sides with panel layout, corner points and connection details is helpful. This allows balcony drains, door swings and existing parapet edges to be taken into account at an early stage.

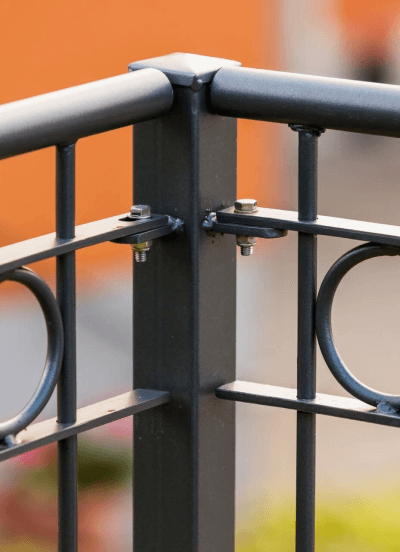

An L-shaped balcony railing is suitable when two sides are secured, for example the front and one side. The balcony railing set in an L-shape usually comprises one corner area and two legs. The clean corner detail is decisive so that the handrail and infill run through visually and no untidy offsets occur. In renovations, it is often relevant whether the corner posts are placed on the floor or fixed to the face of the balcony slab.
In a material comparison, the advantage of metal is particularly evident in corner constructions: unlike timber or WPC, dimensional stability in changing weather is less dependent on moisture absorption. Glass railings look light, but require different detailed planning for clamps, seals and cleaning. The metal balcony railing complete set remains clear as a system and low-maintenance when the coating is chosen appropriately.

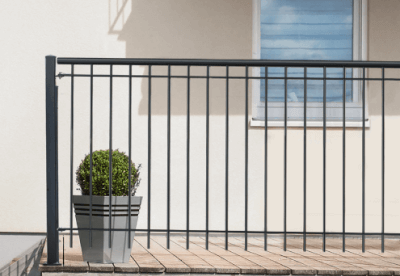

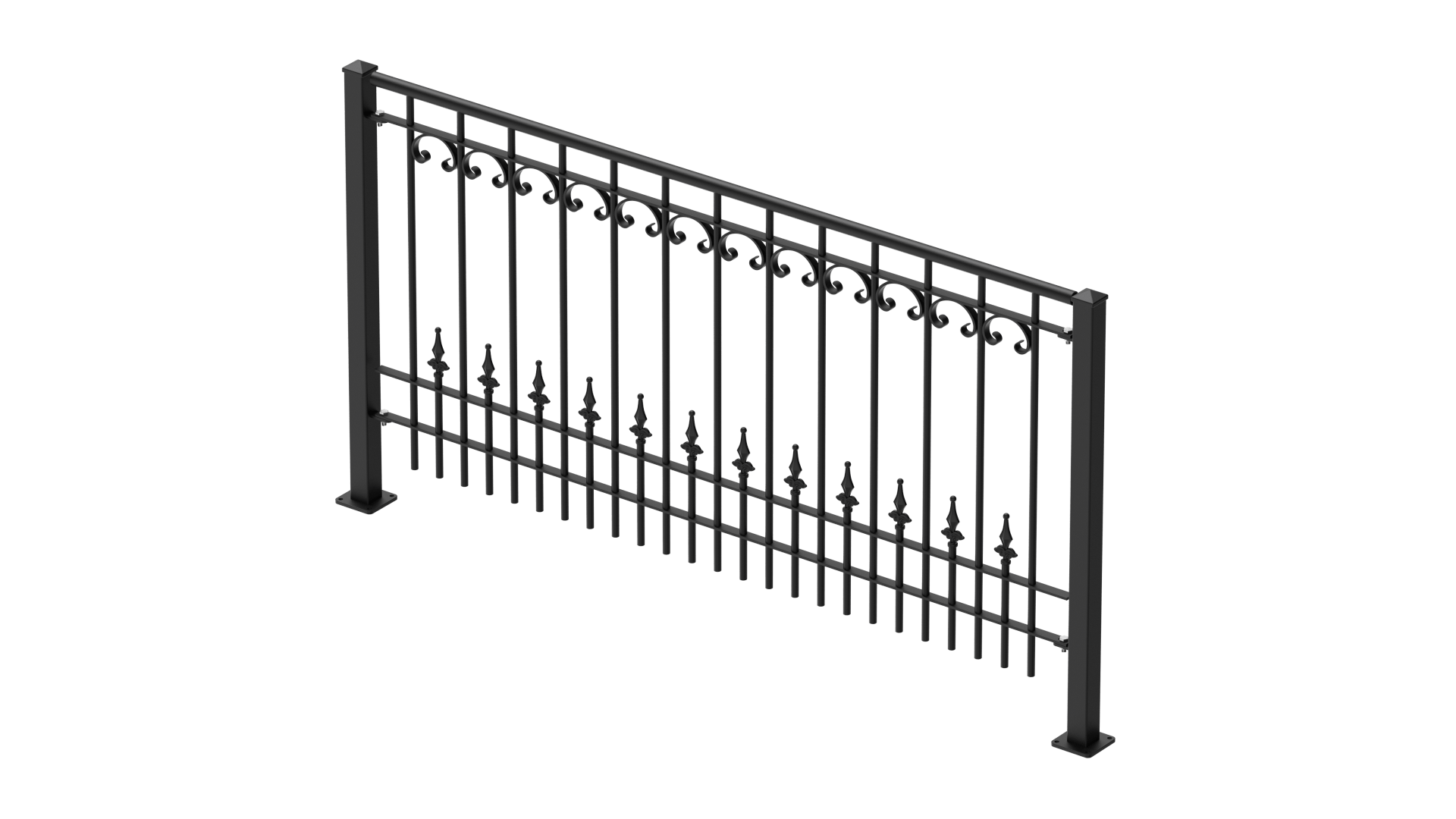

The straight balcony railing complete set is the right solution for linear balcony fronts or as a single section, for example between two walls. The clear panel layout with defined end connections is an advantage. When making your choice, the overall width, the desired post positions and the type of fixing are particularly important. Straight versions are also well suited when an existing railing is being replaced and the connection points are already predetermined.
For a balcony railing complete set, coatings are decisive, as the railing is permanently exposed to the weather. ELEO offers suitable finishes for balcony railings such as hot-dip galvanising and powder coating. These options influence corrosion protection, maintenance effort and appearance. The duplex system – the combination of galvanising and an additional coating – enhances both protective effect and colour stability.
An uncoated version is not offered for a balcony railing complete set, as balconies are permanently exposed to rain, UV radiation and temperature fluctuations. Without suitable corrosion protection, flash rust can form and recurring rework becomes necessary. Durable fall protection therefore uses hot-dip galvanised and powder-coated solutions.

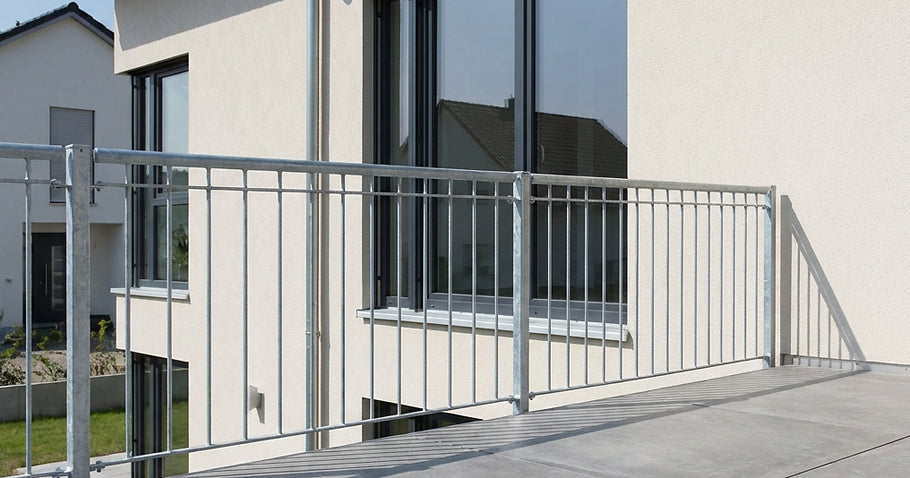

Hot-dip galvanising in the batch galvanising process protects steel with a firmly bonded zinc layer. This creates an iron-zinc layer structure, often referred to as an FeZn alloy. The benefit: even under mechanical stress, the basic protection is retained, because zinc acts as a sacrificial anode. Visually, the result is a typical zinc surface that can vary slightly depending on the material and process.
For balcony railing sets, hot-dip galvanising is relevant when robust basic protection against corrosion is required and the surface may have a technical look. For a homogeneous colour effect, powder coating can be applied on top, creating the hard-wearing duplex build-up.

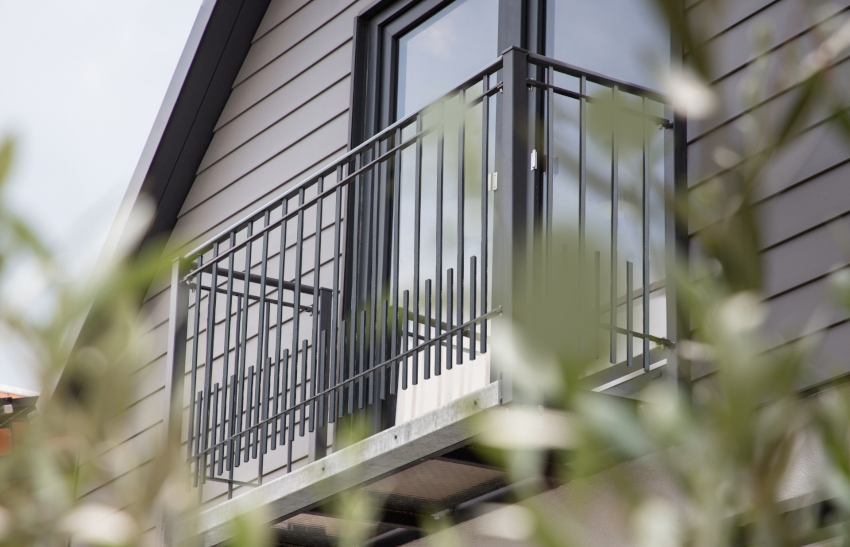

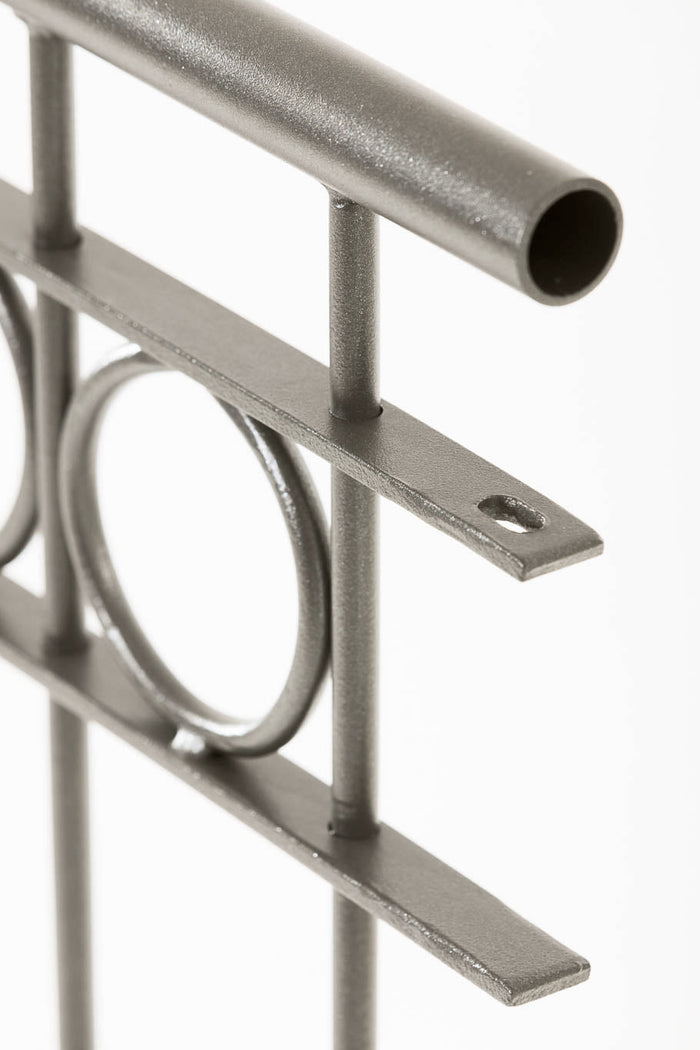

A powder coating provides a coloured, closed surface and makes it easier to integrate the railing into modern façades. For a balcony railing complete set, anthracite tones are frequently requested, including shades similar to DB703. Alternatively, custom colours are possible when a specific colour concept is to be implemented. Technically, a pre-treatment such as zinc phosphating makes sense, as it improves adhesion. In some process chains, CDC (cathodic dip coating) is additionally used as a primer to protect edges and interior areas evenly.
In everyday use, the surface is more homogeneous than with galvanising alone, and cleaning is done with mild cleaning agents. Where mechanical stress is high, for example from flower box brackets, the contact points should be checked regularly.
A balcony railing complete set from ELEO reduces the coordination effort, because shape, fixing points and surface concept all come together as one system. This is particularly important with a U-shaped or L-shaped balcony railing, since corners have to be resolved cleanly both structurally and visually. The showroom in Großheirath also provides a hands-on impression of material effect, finishes and workmanship details, which makes choosing a balcony railing set easier.
Metal railings are designed as a load-bearing construction and are suitable for permanently loaded areas such as balconies. Compared with timber, the cross-sections and connections are dimensioned to ensure high dimensional stability and consistent lines. Compared with WPC, metal plays out its advantages during temperature changes, because the construction can be joined predictably. With glass, detailed planning is shaped more strongly by clamping profiles, seals and cleaning requirements, whereas a metal balcony railing complete set remains straightforward to maintain.
Corrosion protection is essential for balcony railings. Hot-dip galvanising also protects edges and hard-to-reach areas, while powder coating delivers a defined appearance. The duplex system combines both advantages: the galvanising serves as basic protection, and the powder coating finishes the surface with colour and additional protection. Suitable pre-treatments such as zinc phosphating and, depending on the process, CDC can improve layer adhesion, which is relevant for balcony components with many transitions and bolted connections.
Standardised dimensions make short-term planning easier, because recurring panel and post grids can be configured more quickly. A balcony railing complete set can therefore be assembled swiftly as a system, even when the geometry is implemented as a U-shaped or L-shaped balcony railing. For project coordination, it also helps that a technical drawing as a service makes the dimensional chain transparent and reduces queries about corner points and connection types.
Let us convince you!
Find all our products in our comprehensive catalogue in PDF format. You can download it here:
Do you have any further questions? No problem! You can contact our customer service team Monday to Friday from 8am to 4pm using this contact form.
A balcony railing complete set is fall protection and therefore safety-relevant. Installation concerns the connection to the building structure, suitable fasteners and compliance with the relevant standards and building regulations. Having the work carried out by a specialist company therefore makes sense, especially with face mounting, insulated façade build-ups or uncertain substrate quality. The article Installing a balcony railing: DIY or specialist company – what really makes sense provides a practical assessment of typical sources of error and decision factors.
The configuration brings together shape selection, dimensions and coating so that your balcony railing set can be planned to fit as a straight version, in a U-shape or in an L-shape.
The decisive factors are the applicable building regulations and technical rules, which cover railing heights, opening widths and the design as fall protection, among other things. In addition, requirements arising from the building design, the existing structure or special uses may be relevant. What counts for implementation is not only the product, but also the professional connection to the building structure.
The choice depends on the number of sides to be secured and the available connection surfaces. A straight balcony railing complete set suits linear fronts or spaces between walls. An L-shaped balcony railing covers two sides with one corner. A U-shaped balcony railing is suitable for three sides and requires careful planning of corner and end posts. The decisive factors are overall lengths, panel grid, corner detail and the type of fixing.
Since a balcony railing complete set is a safety-relevant construction, installation by a specialist company is the right choice. A specialist can assess substrates, determine suitable fasteners and document the installation so that the requirements for fall protection are verifiably met.
Hot-dip galvanising offers robust basic protection against corrosion. Powder coating provides a defined colour, for example in anthracite or as a custom colour. A duplex build-up, in which powder coating is applied on top of the galvanising, is often sensible in order to combine protective effect and appearance. The choice depends on the location, maintenance expectations and the desired colour effect.
For a balcony railing complete set, you should plan for a delivery time of 12-16 weeks. Where the project situation allows, express production within 6-8 weeks may be possible. The actual duration depends on the shape (straight, U-shape, L-shape), the coating (hot-dip galvanised, powder-coated) and the final approval of dimensions.
